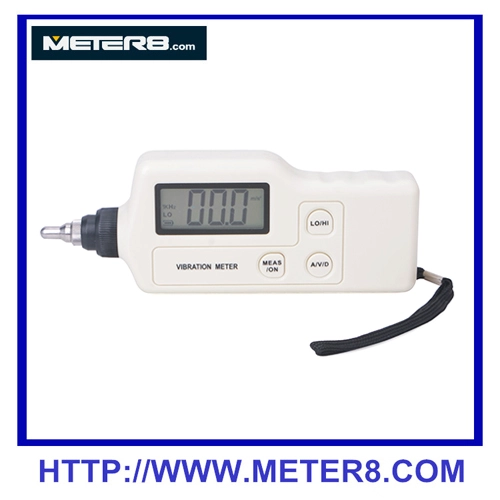

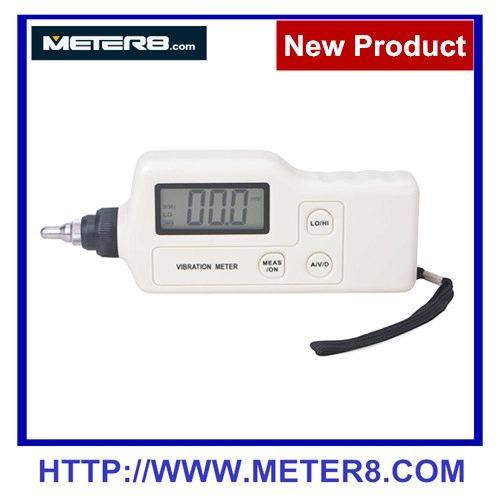

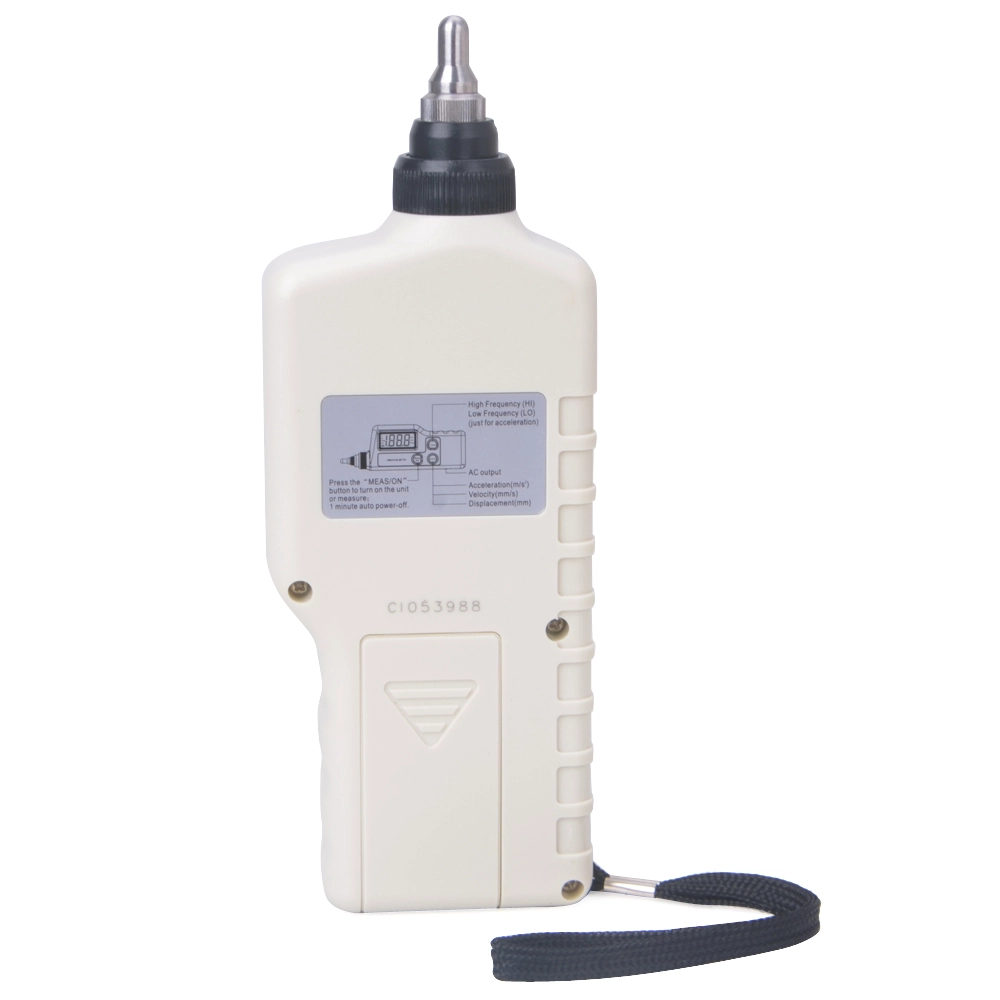

GM63A Portable Digital Vibration Measurement Instrument Vibration MeterGM63A Portable Digital Vibration Measurement Instrument Vibration MeterGM63A Portable Digital Vibration Measurement Instrument Vibration MeterGM63A Portable Digital Vibration Measurement Instrument Vibration Meter

GM63A Portable Digital Vibration Measurement Instrument Vibration Meter

  • Specifications
  • Technical parameter
  • Vibration pickup: Piezoelectric ceramic accelerometer (shear-type)
  • Measurement range of acceleration: 0.1~199.9m/s peak
  • Measurement range of velocity: 0.1~199.9mm/s rms
  • Measurement range of displacement: 0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s²
  • Measurement accuracy: ±5% ±2digits
  • Measurement frequency range of acceleration: 10Hz~1KHz (LO) 1KHz~15KHz (HI)
  • Measurement frequency range of velocity: 10Hz~1KHz (LO)
  • Measurement frequency range of displacement: 10Hz~1KHz (LO)
  • Displays update cycle: 1 seconds
  • LCD display: 3 1/2 digits display
  • Single output: AC output 2 V peak (display full scale) Load impedance 10K or more earphones can be connected
  • Power supply: 9V battery
  • Static current: ≦20 A
  • Operating current: ≦25mA
  • Battery life: 20 H continuous use
  • Auto power-off function: Turns off automatically after 1 minute
  • LCD backlight function: 7 sec
  • Operating temperature range: 0~40℃
  • Operating humidity range: 30~90%RH
  • Low battery indication: 6.9V ±0.2V
  • Dimensions: 67x30x183mm
  • Weight: 147g (not including battery)
GM63A Portable Digital Vibration Measurement Instrument Vibration Meter
Introduction
This product adopts piezoelectric effect of artificial po-
larized ceramic for design, it is suitable for monitoring of
all kind of vibration mechanical facility, specially the
vibration measurement of rotating and reciprocating
machinery. The unit can measure acceleration, velocity
and displacement, which is widely used in mechanical
manufacture, electric power metallurgy and general
aviation etc. Field.

Features

Visually displays measurement value and state
Acceleration, velocity and displacement measurement
Different vibration frequency selection
High sensitivity probe for accurate measurement
Provides long and short probe head each one, is
suitable for different situation measurement.

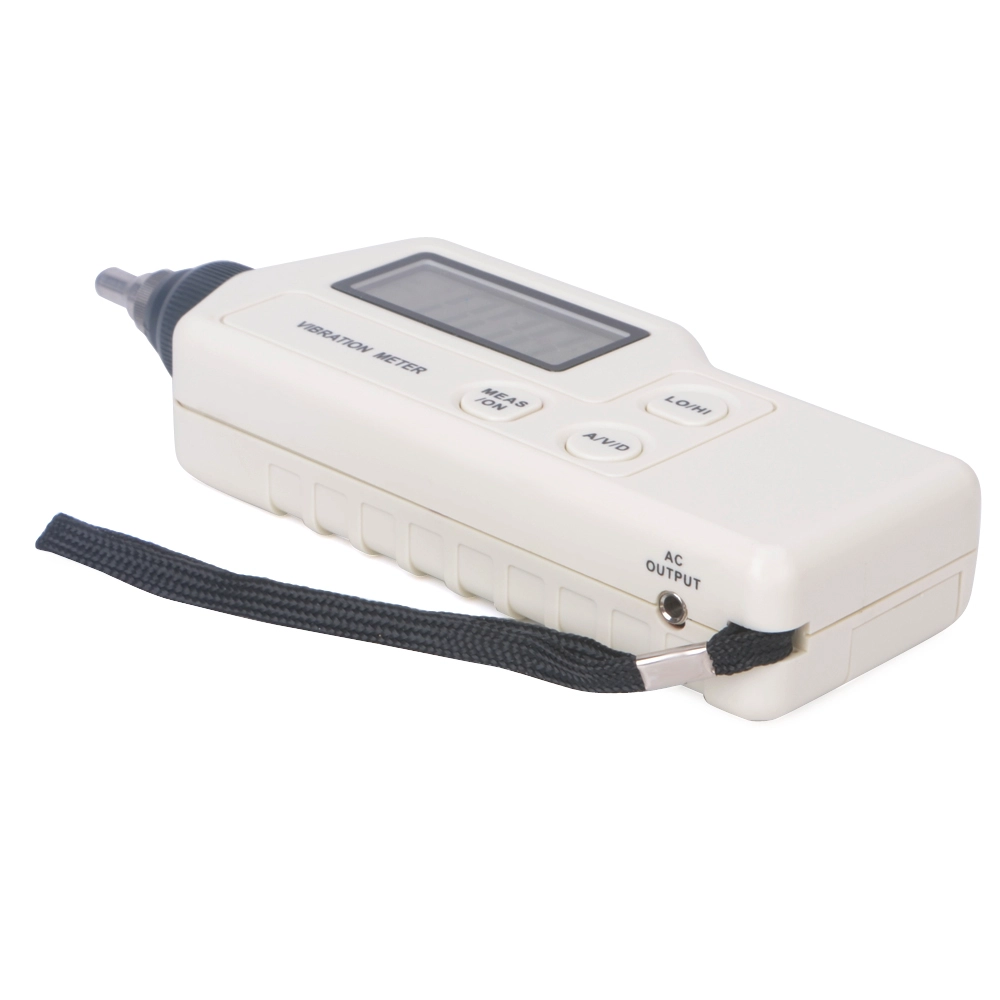

Equipped with AC signal output interface
Low power indication function
Auto power-off function
LCD backlight
Simple to use, the structure is compact, portable for
carrying along with measurement.
