Hot sale model:SDS7102 digital oscilloscope

  • Author:Alice
  • Release on :2015-01-26

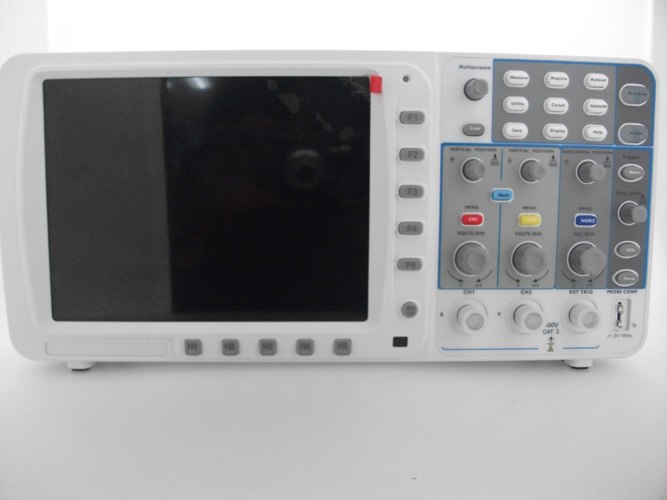

SDS7102 digital oscilloscope

Bandwidth  100MHz
Sample rate (real time)  1GS/s
Horizontal scale (S/div) 2ns/div~100s/div step by 1~2~5
Rise time (at input, Typical) ≤3.5 ns
Channels  2 + 1 (External)
Display 8” Color LCD, TFT display, 800× 600 pixels, 65535 colors
Input impedance 1MΩ±2% in parallel with 10pF±5pF
Max. input voltage 400V (DC+AC PK-PK) CAT II
DC gain accuracy ±3%
Probe attenuation factor 1X,10X,100X,1000X
LF respond (AC, -3dB〕 ≥5Hz ( at input )
Record length 10M points on each channel
Sampling rate / relay time accuracy ±100ppm
Interpolation (sin x)/x
(full bandwidth) Single:±(1 interval time+100ppm×reading+0.6ns)
Average>16:±(1 interval time +100ppm×reading+0.4ns)
Input coupling AC,DC,GND
Vertical resolution(A/D) 8 bits resolution (2 Channels simultaneously)
Vertical sensitivity 2mV/div~10V/div(at BNC input)
Trigger type Edge, Video, Alternate, Slope, Pulse
Trigger mode Auto, Normal, Single
Trigger level ±6 div from the screen center
Sampling mode Sample, Peak detect, Average
Line/Field frequency (Video) NTSC, PAL and SECAM
Cursor Measurement △V and △T between cursors
Automatic measurement Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre - shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→ B▲  Delay A →B▼
Waveform Math +, -, *, / ,FFT
Waveform storage 15 waveforms
Lissajou’s figure
Bandwidth Full bandwidth
Phase difference ±3 degrees
Communication port USB2.0, USB flash disk storage, VGA, Pass/Fail, LAN
Consumption <18W
Fuse 1A,T class,250V
Dimension 340mm(L)*155mm(H)*70mm(W), 1.8kg
