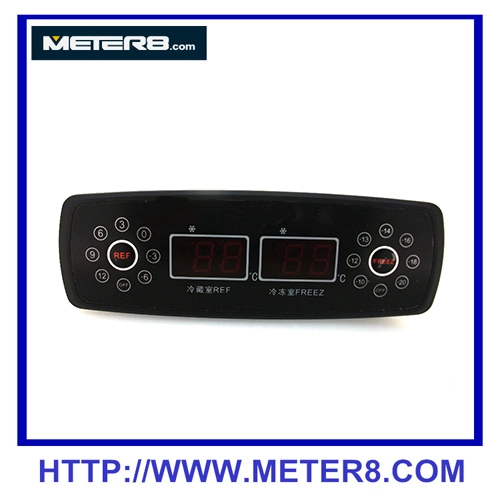

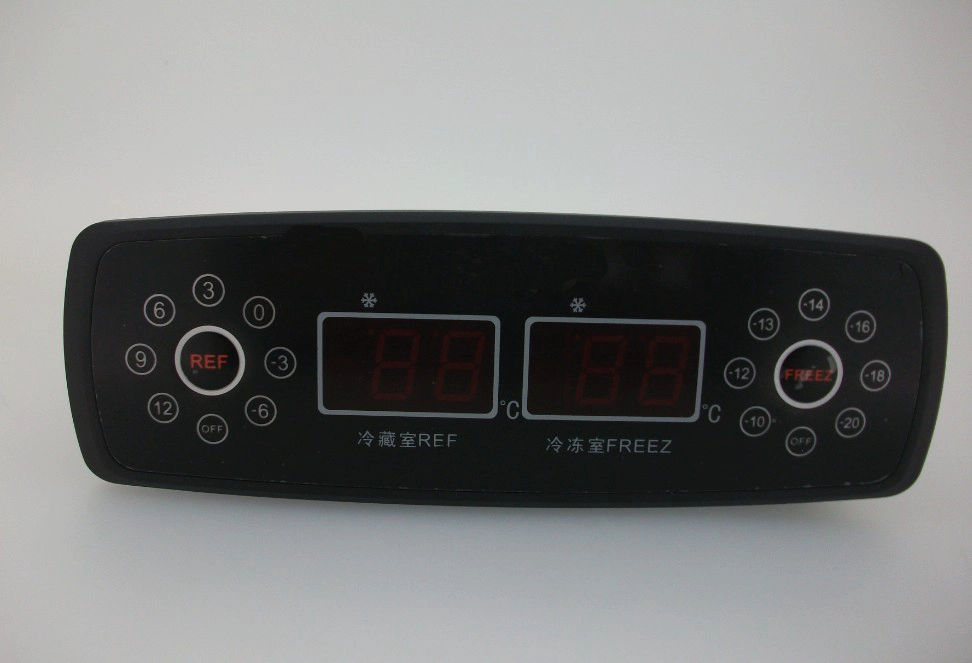

R12F12 Digital Thermostat for Kitchen CabinetR12F12 Digital Thermostat for Kitchen Cabinet

R12F12 Digital Thermostat for Kitchen Cabinet

  • Temperature measuring range: -40°C~70°C
  • Resolution: 1°C3 Accuracy: -40°C~50°C,±1°C,50°C~70°C,±2°C
  • Power supply: 230VAC±10%,50/60Hz
  • Power consumption: <5W
  • Operation temperature:-10°C~50°C
  • Storage temperature: -25°C~75°C
  • Storage humidity: 20%~85%(non-condensing)
Digital  Thermostat for Kitchen Cabinet   R12F12

Measuring and Controlling the temperature of cold storage/cold frozen. Widely used for kitchen cabinet, and some place which need double -temperature/ double-controlling.

General Description

1.Temperature controllers could measure and control dual-way temperature (refrigerating and freezing cabinets), and has the functions of compressor start-up delay protection, code display when sensor failure.They are very easy to operate.

Technical Parameters

1.  Temperature measuring range: -40°C~70°C
2.  Resolution: 1°C3 Accuracy: -40°C~50°C,±1°C,50°C~70°C,±2°C
3.  Power supply: 230VAC±10%,50/60Hz
4.  Power consumption: <5W
5.  Relay output for refrigerating:30A/240VAC,max compressor loading 1.5HP/240VAC
6.  Relay output for freezing: 30A/240VAC,max compressor loading 1.5HP/240VAC
7.  Product size: 180mm×60.14mm×84.2mm
8.  Mounting size:157mm×39mm
9.  Operation temperature:-10°C~50°C
10.  Storage temperature: -25°C~75°C
11.  Storage humidity: 20%~85%(non-condensing)

Packing Info

50PCS/CN, 42.2*37.2*60.2CM,  25KG
