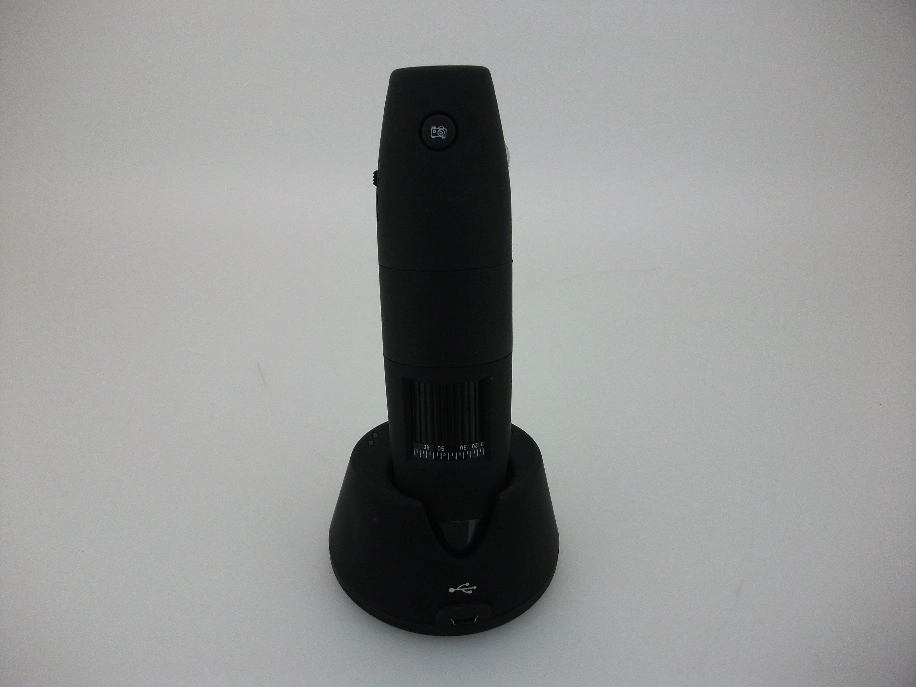

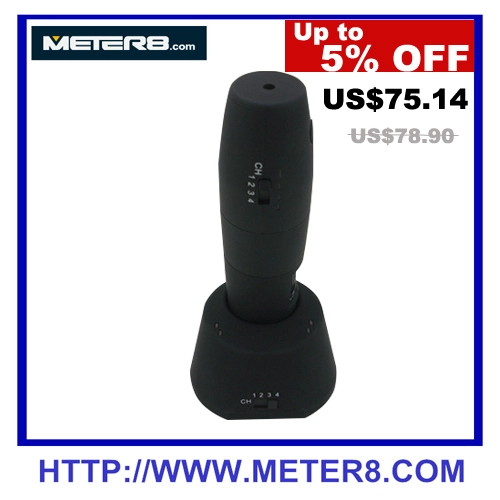

DMW-350U Wireless USB MicroscopeDMW-350U Wireless USB Microscope

DMW-350U Wireless USB Microscope

  • Sensor: 1/4"Imax CMOS
  • Resolution: 350K Pixel
  • Image pixel: 320(H)x240(V), 640(H)x480(V), 720(H)x480(V)
  • Illumination: 8pcs white adjustable LEDs
  • Frame rate: 30fps@720x480,30fps@640x480, 30fps@320x240;
  • Tx/Rx frequency-2.4GHz 4 channels option
  • Transmission Power:10mW
  • Receiving Sensitivity: -87dBm
  • Signal/Noise Ratio: 47dBm
  • Antenna Resistance: 50Ω 2.4GHz
  • Transmission distance:≥5m
  • Signal Interface: USB 2.0/1.1
DMW-350U Wireless USB Microscope, Wireless USB Microscope

Product Specifications

1.  Camera Type: Color CMOS Camera
2.  Sensor: 1/4"Imax CMOS
3.  Resolution: 350K Pixel
4.  Image pixel: 320(H)x240(V), 640(H)x480(V), 720(H)x480(V)
5.  Illumination: 8pcs white adjustable LEDs
6.  Frame rate: 30fps@720x480,30fps@640x480, 30fps@320x240;

Optical features

1.  Gamma Correction: Auto;Numerical Aperture: Auto;Exposure: Auto;White Balance: AutoBlack 2.  Reference: AutoFlicker Cancellation: AutoDefective Pixel correction: AutoColor Saturation: Auto

Wireless features
1.  Tx/Rx frequency-2.4GHz 4 channels option
2.  Transmission Power:10mW
3.  Receiving Sensitivity: -87dBm
4.  Signal/Noise Ratio: 47dBm
5.  Antenna Resistance: 50Ω 2.4GHz
6.  Transmission distance:≥5m
7.  Signal Interface: USB 2.0/1.1
8.  Li-ON Batteries working hours:About 6 hours
9.  Power Consumption: 0.75W MAX
10.  Adjustable Magnification: 10x~200x
11. Object Distance: 0~200mm

 Software Features
1.  Snapshot
2.  Video recorder
3.  Take time lapsed Picture
4.  Additional Cross Line,Scale,Timer
5.  Measurement:length,area,diameter,angle
